Kami menyediakan berbagai macam produk electrical yang berbasis explosion proof maupun
electrical general dan juga material yang di butuhkan untuk area hazardous, zona 1 dan zona 2.
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
--------------------------------------------------------------------------------------
----------------------------------------------------
ENCLOSURE EJB SERIES " BOX PANEL "
electrical general dan juga material yang di butuhkan untuk area hazardous, zona 1 dan zona 2.
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
" Box Panel Explosion Proof EJB_Warom_HRLM Glodok Jakarta "
--------------------------------------------------------------------------------------
Informasi lebih lanjut dapat menghubungi :
Amas : 0813 8626 1135
Telepon : (021) 29841124
Email : muhtarjayanto@gmail.com
puteraintanperkasa@gmail.com
Web : www.puteraintanperkasa.wordpress.com
www.samik-indonesia.hol.es

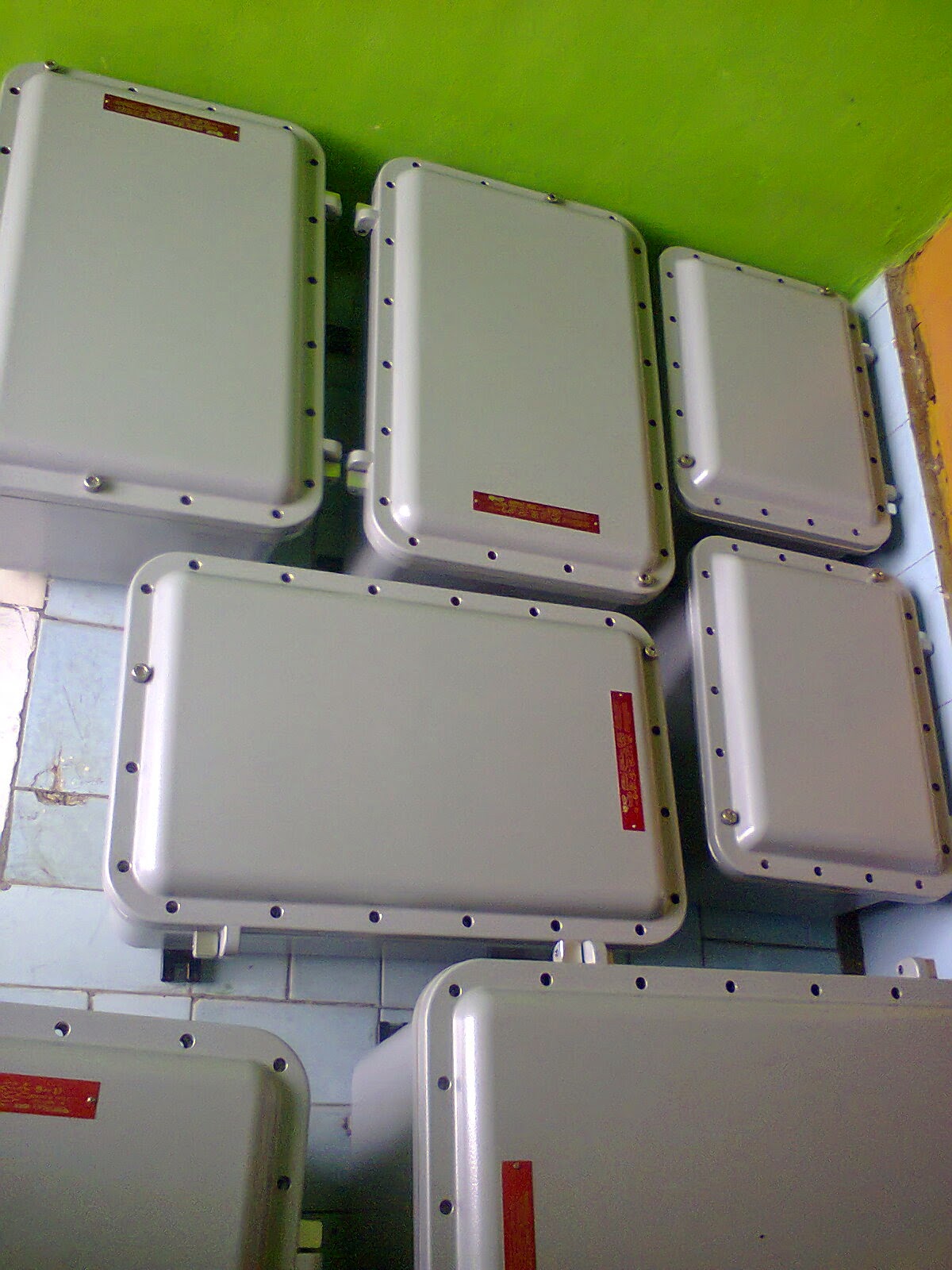

ENCLOSURE EJB SERIES " BOX PANEL "
Type of protection: II 2 GD Ex d IIB+ H2 T6
Protection degrees: IP 66
EJB - DESCRIPTION - Technical data These enclosures are made in die cast aluminium, lower and upper pression, with light alloy copper free ( lower at 0.1% of copper) .
The cover is endowed with a series of screws in stainless steel AISI 304 A2 70, or on request, in AISI 316 A4, to boxed hexagon, distributed on the perimeter of the cover, for the closing in safety and, on request, with perimetral gasket suitable for mantain the IP 66 degree of protection.
The models with inspection window are equipped with a tempered glass and internal flange for fixing. Outside and inside the enclosure, are provided a M6 screws for earthing connections and relative star washers in AISI 304 stainless steel.
The enclosure is provided of aluminium internal plate. Accessories and special execution on request External coating • painting with epoxy powder, our std. Grey RAL 9006 • Special external coating painting off-shore, as per client specification • Internal anticondensation coating painting, our std. Orange RAL 2004 • Drain valve • Breather valve • Special hardware in stainless steel AISI 316 A4 • Out of standard thread
